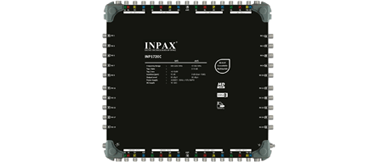

MS1720C

Inputs horizontal/vertical 16 ports 1 terr Outputs horizontal/vertical 16 ports 1 terr Receivers output 20 ports Frequency range SAT:950-2250MHz terr:47-860MHZ SAT:tap GAIN 5dB Terr:tap loss 2 dB Isolation Horizontal/vertical 25dB Isolation port to port 25dB Isolation trunk to trunk 30 dB Control diseqc 2.0 Control 22KHZ±2KHZ Control vertical 11.5-14.0 Control horizontal 16.0-19.0 volts Control drain per subscriber 80mA Supply voltage Supply power AC220V- 50HZ±10%SMPS Maximum output level 95dBuv Noise figure 7dB Linearity ±3dB Click To View >> 　 MS1704C MS1708C MS1712C MS1716C MS1720C MS1724C MS1728C MS1732C
