UNITED TECHNOLOGIES OF INPAX

　DVB-S HD ALICILARI

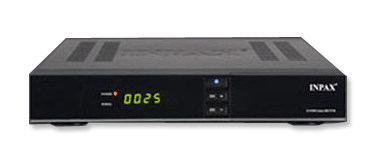

　　　　　　X-9100 LINUX HD PVR

High Definition TV Digital Satellite Receiver with Linux Operating System CAS + LAN + USB PVR

Your satellite receiver INPAX - 9100 Linux HD PVR utilizes the Linux infrastructure; however, it is completely different from the joint based satellite receivers. Your satellite receiver INPAX - 9100 Linux HDPVR is equipped with a special interface in the style of a Standard satellite receiver that enables easy use. By this means installation, use, setting and adding new channels are very simple. It is compatible with all types of TV such as LCD / PLAZMA ED / HD READY/FULL HD and CRT TV.
HD/SD/MPEG4 – Satellite make you listen and watch the IV. Radio broadcastings with its Media Player feature by resolving different formats of HD and SD sources over itself from the USB input. (audio, movie, clip, series etc downloaded from the internet). Thanks to Ethernet input it participates in sharing in the ?NTERNET environment and enables you to connect to the special domains both on your computer and on internet. It enables Access to the domains like internet radios, YOUTUBE ; to watch and listen on your TV. Your satellite receiver is also a perfect PVR, it can record and play the satellite broadcastings on USB flash and/or USB HDD. And tens of unique features are presented by
INPAX - 9100LinuxHD PVR. Multimedia facilities provided by Professional satellite receivers which are Linux based and very hard to use are now being brought to you by INPAX - 9100 Linux HD PVR in the quality of satellite receiver with the simplicity that everyone can use

OSD Menus in Turkish and tens of different languages
and TELETEXT{VBI and OSD). The opportunity to choose different transparency options for Teletext.
Software updates, softcam, channel data update & backup opportunity through USB, RS PORT, ETHERNET.
WHAT ELSE CAN YOU DO THORUGH INPAX - 9100 Linux HD PVR ETHERNET INPUT (over internet)
You can send, receive s/w, channel info, music, image, multimedia files and record on USB flash memory and play by activating the VFTP feature.
By connecting to the bit Torrent sites, you can download files on the extra memory (for example you can download HD video clip and play over your satellite receiver).
In the sharing section, different system servers in more than one address can operate actively at once.
By its internet radio feature (Tag supported), you can listen to local and foreign internet radios.
(the content of the domain to be connected and radio broadcastings will not be provided, only connection is provided). You can enter the You tube, select your favorite groups or search for yourself and play on your TV.
(playing speed is proportional to the internet speed).
Your satellite receiver is equipped with the interface required for Access to the special sharing sites on internet.
It is compatible with. Cccam, Nevvcamd and g-share, gshare+(server domain support is not supplied).
For the future software, many innovations shall be included and you will have many more features.

EQUIPMENT
MASTER PROCESSOR: NXP8735E (320 MHZ) / Flash Memory: 32 MB DDR MEMORY 64 MB/Conax CAS7.0 Embedded 1 universal card reader/RJ 45 ETHERNET input/1 scart/1 HDMI output/RCA type CVBS video and stereo audio outputs/4 digit pre channel /Wifi wireless internet connection option from the USB input (models supported by the producer).

WHATELSE CAN YOU DO THROUGH THE INPAX - 9100 Linux HD PVR USB INPUT ( FAT,FAT32 and NTFS)
A) SOURCE EDIT. SOFTWARE UPDATE
It give the opportunity to delete, list, name, group the files in the source. It can update the new software, download the channel list info, key information, on your satellite receiver.

IMAGE (VIDEO FEATURES)
MPEG1, MPEG-2 MP@ML, H.264, VC1, DV, DivX, and MPEG4 /HD-SD /Multi-media support (Playback TS, MKV. AVI. DivX, XviD. VOB. RMVB, RM.) Linux OS operating system based special software (images created for other satellite receivers cannot be used; Source is not open to the user; All the features of the satellite receiver is maintained).
Opportunity to have many future additions for free with the Standard software development support of the INPAX.
It records on exterior sources and plays the files on these sources / USB2.0 / HDD). By its Time Shift feature it stops the live broadcast and resumes from the point where paused. (with the USB input external memory }.
It makes the watching clearer by increasing the resolution of the SD broadcasts and HD broadcasts (upscale).
Image resolutions: 480p & 480i, 576p & 576i. 720p & 1080i 50Hz, 720p&1080 i60Hz, 1080P 30Hz VC1 - SD, HD, 720p and 1080i Image Format: You can watch PAL, NTSC, SECAM1080 P recordings over your satellite receiver. I & P frame support through the Ethernet input.
B) MEDIA PLAYER
You can listen, pause, reverse and forward, skip, play individually or in order on your TV over your satellite receiver, you can create your music library by category.
Through the source that is connected to the USB input, you can play, watch, and listen all the formats shown adjacent on TV over your device.
For example (upload the HD audio, music, movie files that you downloaded from the internet on your USB and watch them over your satellite receiver as HD). SUPPORTED FILE FORMATS: AVI, MKV, MP4,Mov,3gp,MPG,PS,vob,dat,ts,m2ts,flv,asf, rmvb, wmv, wma..You can fast forward, rewind, skip, skip to the time you desired while you are watching and listening.

AUDIO FEATURES
MPEG-1, MPEG-2. MPEG-2. MPEG-4, WMA encoded bit-streams/ MPEG-1 Layer I and II (MUSICAM) ISO 11172/ MPEG-1 Layer 3 (MP3) support / Windows Media Audio v.9 and VVMA Pro support / sample rates: 11,16,22,24,32,44.1,48kHz/Stereo 24-bit audio DAC for analogue audio output / S/PDIF port for bit-stream output
C) PLAYING THE SUBTITLE FILES. COPYING FROM THE READY SOURCE .
You can use the srt .sub format subtitle files in for example adding Turkish subtitles by connecting a source through the USB input.
In order to provide synchronization your satellite receiver presents features of timeshift and the opportunity to restore the subtitle files of the movie being played in a desired language on the memory and replay.
Besides while copying subtitles you can select the format and save.
GENERAL USING FEATURES FOR THE SATELLITE RECEIVER
10000 channels /100 satellites /4000 tp capacity extended memory
For SD broadcasts, by the PIP 2 feature, you can
watch 2 channels at the same Tp live, change place with a sinle command, choose the place and dimensions of the frame area.
It is appropriate for using with single or multi individual motor and joint antenna system by the DISEOC 1.0/1.1/1.2 VE USUALS support.
It gives perfect receiving opportunity for al satellites thanks to its sensitive tuner.
With its blind scan feature it is fit for feed hunters.
Point zoom feature by selecting the desired section of the display
(for HD and SD channels).
It includes the feature of splitting the display in frames (multi PIP), HD and SD channels are shown on the same display for a short time.

(Only one of them can be watched live). Frame number can be selected by the user.
Recall feature back to the last watched channels, different audio storing facility for every channel.
With the support of 4 different timers, it is ideal for recording.
Opportunity of transferring, back up, restoring the channels and setting information saved in the device from the device to the USB memory

The features of saving and restoring the channels and system information on the device set in the device memory without USB.
Option to provide security for the device settings by locking five different sections.
Easy selecting feature by listing FTA/PASS/SATELLITE/TP/ALPHABETHICAL /HD in the channel list.
Satellite listing Total locking feature for the special satellites.
Other than the channel list you can also make total deleting and replacing in the satellite channel list.
Options of creating and editing 8 favorite channel lists and editing, locking, listing.
Restoring the factory default settings individually for 3 different sections.
Full function weekly and daily
EPG, TURKISH TELETEXT and subtitle support
In the channel list, features of channel moving, deleting, naming (total delete and channel moving can be done).
Option to delete first the old ones with a single command without searching for the same satellite in the satellite scanning menu.
D) WATCHING THE IMAGES ON TV YOU’RE YOUR SATELLITE RECEIVER
Images with JPEG, gif, bmp format (as the file size gets larger, opening process takes longer, it is limited.)
E) USBPVR FEATURE(RECORDING)
Your satellite receiver has the feature of saving and replaying the HD and SD broadcasts on the recording/storing source connected through the
On the remote controller there are functions of forward, rewind, skip, pause, skip title and such. And also you won’t miss the series you love by saving with the automatic recording feature by programming from the timer options. You can watch on the TV, turn the image and zoom with the remote control.
E) TIME SHIFT
This feature is only active if a memory is connected to the USB input. While watching the live broadcast, it pauses the display and saves when you push the pause button; when you come back and push the button again, you can watch the broadcasting from the point that you paused so you will never miss the match again!

Note: INPAX reserves the right to amend the properties above without prior notification
